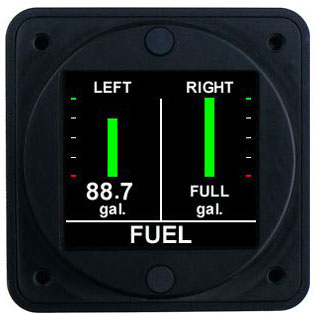

Aerospace Logic Resistive Fuel Level Gauge — Two Tank FL202

Part Number: 10-04432

Overview

The FL20X instruments are advanced, next generation airborne fuel level reporting instruments that support from two to six fuel tanks using resistive, float type fuel senders. Fuel level functionality is TSO'd and meets the repeatable accuracy requirements of SAE AS405C, +/- 1 US Gallon.

Functional displays include graphical indication of fuel level in each tank, selectable digital fuel quantity for each tank, fully programmable color indication to meet all aircraft marking requirements, and graphical fuel level indication starting at power on.

Specifications

• Certification: TSO C55a
• Signal Input: Sender resistance 0.25Ω to 300Ω
• Display: Fuel Quantity US Gallons or Litres
• Accuracy: Fuel Quantity AS405C +/- 1 USG
• Range: 0 to 120 USG (defined by fuel sender / tank size)
